MTM Hydro's BRV unloader series with easy start functionality is a trapped pressure unloader that has universal 3/8" ports for mounting, installation, and bypass requirements. The BRV unloader readily competes and regularly replaces competing models such as the VRT3 or Pulsar Unloaders. With its enticing price point, this Italian designed and manufactured unloader can be found across dozens of industries.

• Bypass - Two available 3/8" NPT Female ports
• Inlet - Two available 3/8" NPT Female
• Outlet - 3/8" NPT Female
• Mounting port - 3/8" NPT Female bottom mounting port available
• Easy Start Version
• Shaft made of stainless steel for greater resistance to rusting and greater resistance to the torsional forces leading to longer life
• Main spring is guided through a thick spacer instead of a cheap washer
• Initial spike pressure is 30%, which is approximately a 23% reduced spike pressure compared to competitors.
• Max - 2,300 PSI - Yellow O-Ring
• Max - 12 GPM
• Max - 194°F temp rating
• Fits Pumps with 1/2" inlet and 3/8" outlet

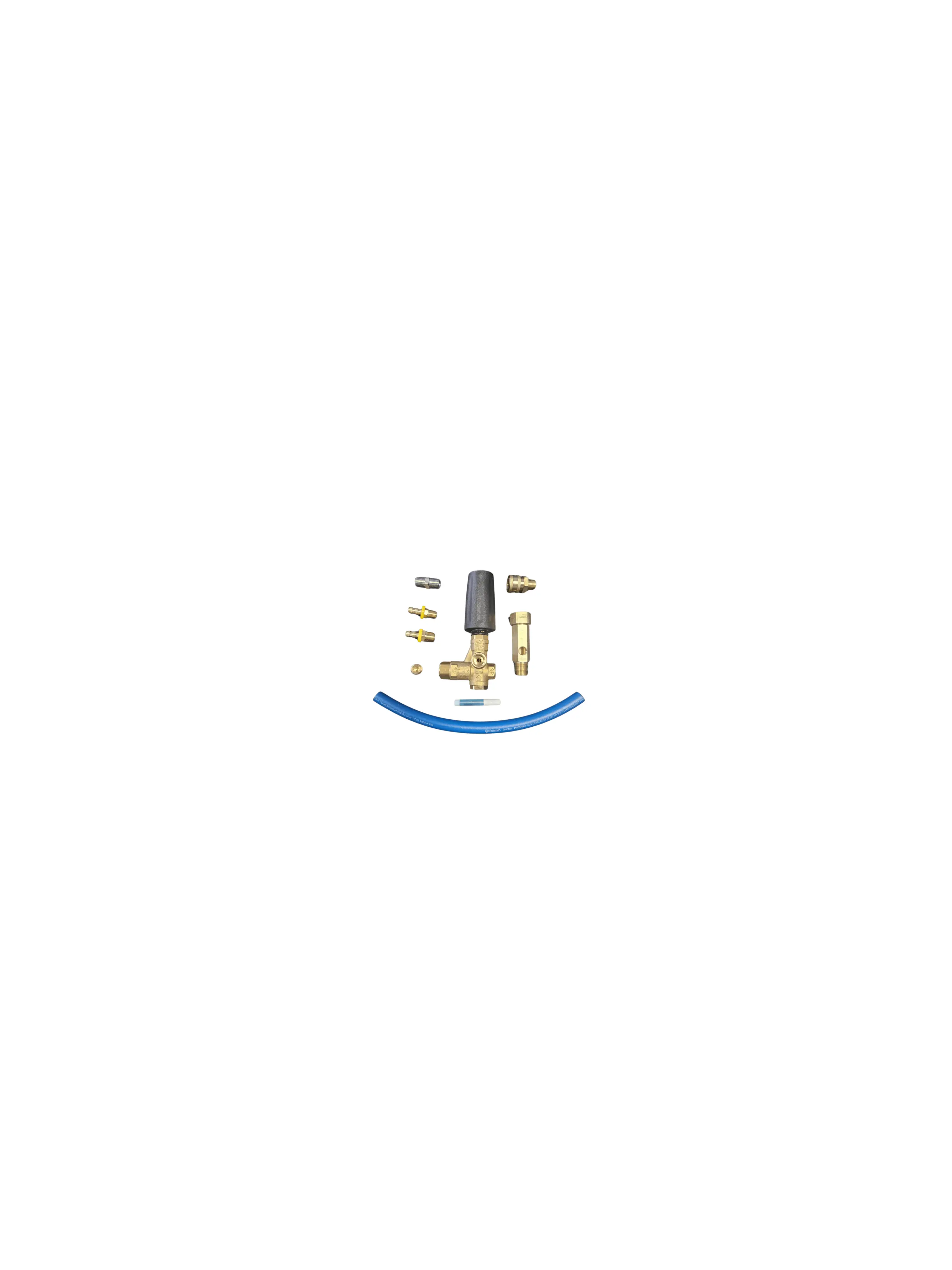

The 2,300PSI Unloader Made Ready Kit includes all of the parts below.

24.4001    ZINC MPT HEX NIPPLE 3/8" X 3/8"
18.0406    BRV31 UNLOADER EASY START NPT 2320 PSI W. KNOB
24.0070    BRASS QC SOCKET 3/8MPT
24.0057    GARDEN HOSE INLET FILTER BRASS 3/4 FGH-1/2 MPT
16.0132    PUSH ON HOSE BARB 3/8" BARB X 3/8" MPT - BRASS
16.0131    PUSH ON HOSE BARB 3/8" BARB X 1/4" MPT - BRASS
29.4000    INSTA GRIP 3/8 BLUE HOSE 300 PSI
22.0341    THREAD LOCK MEDIUM - SINGLE USE
