• Burner cover: protects the burner against blows, dust, water, weather and collect diesel fuel/condensation recovery basin
• Burner is supplied with snorkel jack to ensure clean air combustion through connection with outdoor air uptake duct

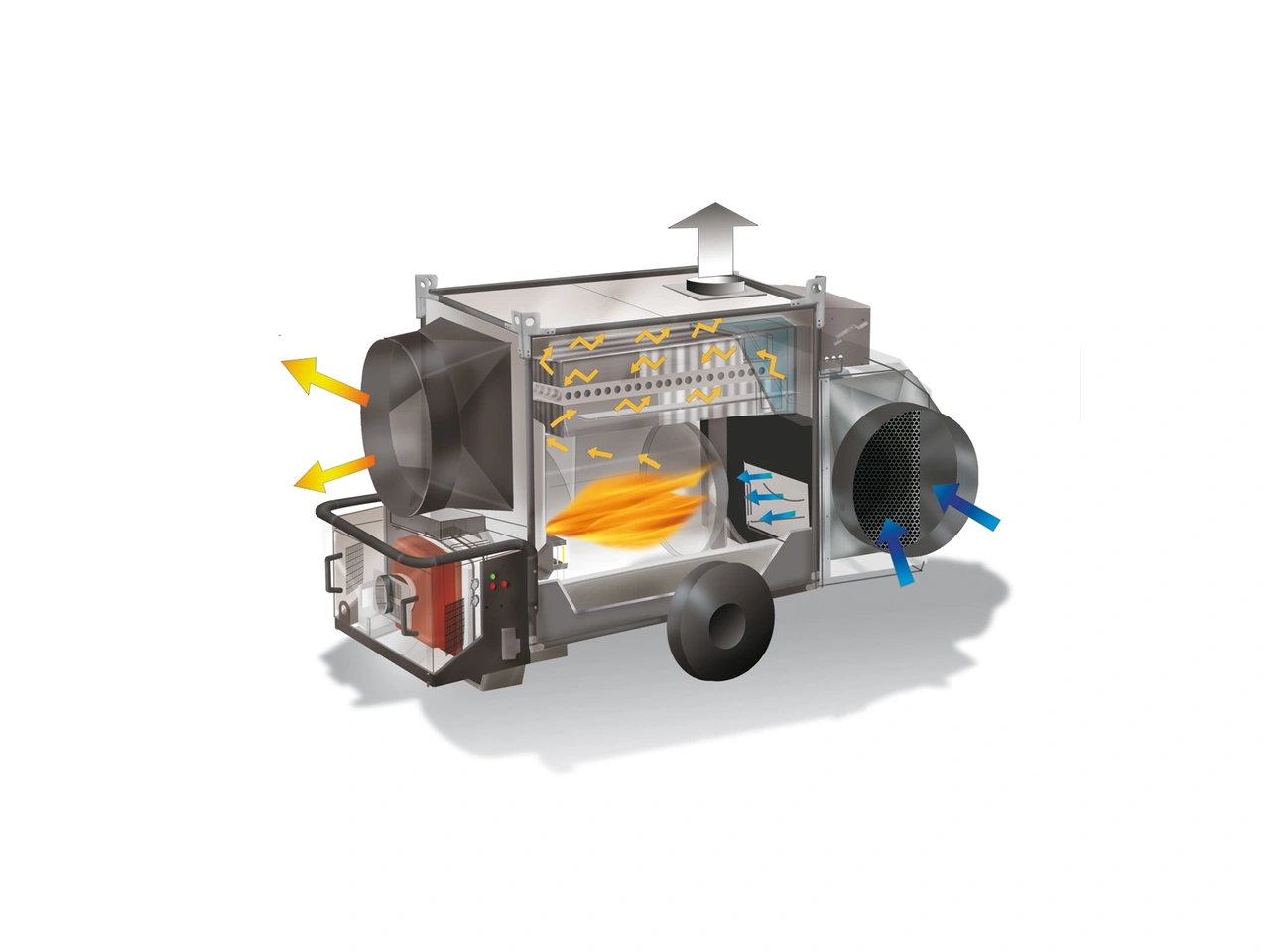

• The new heat exchanger with the newly designed higher performance fans ensure heat efficiency of 96%
• Better anchorage to the machine’s weight bearing structure through sturdy attachment rods which allow for movement on any floors
• Bearing structure with removable panels for interior washing, also in hanging models
• Panels with reinforcement cross pleats to ensure superior rigidity and strength
• Exclusive use of metric screws and inserts for fastening, no self-tapping screws
• Protection cap of combustion chamber exhaust in plastic material with retention chains guards
• .Ventilator (IP 55):

- very low noise fan (noise level ≤ 69db at 2 meters)
- high output, high performance fan guarantees increased
air flow and static pressure (500 Pa) for uniform and long
distance diffusion of warm air through channels or ducts
- fan anchorage on machine’s bearing structure through
sturdy rods
- adjustable fresh air re-uptake shutter

• Control rear electrical panel (IP 65):

- located at the top rear of the machine to avoid contact
with dust, water, snow
- supplied with a sturdy metal cover to prevent damage
and unauthorized access; also handy for storage of tools,
papers, etc;

• Service front electrical panel (IP 65):

- located at the front of the machine inside the burner cover
lid: to prevent contact with dust, water, snow; for easier
maintenance; to facilitate controls and maintenance by
the operator

• Every main component (fan, burner, thermostats, etc.) is supplied with quick couplings of electrical connections:

- fast assembly, disassembly and technical maintenance
- eliminates installation/disassembly mistakes
