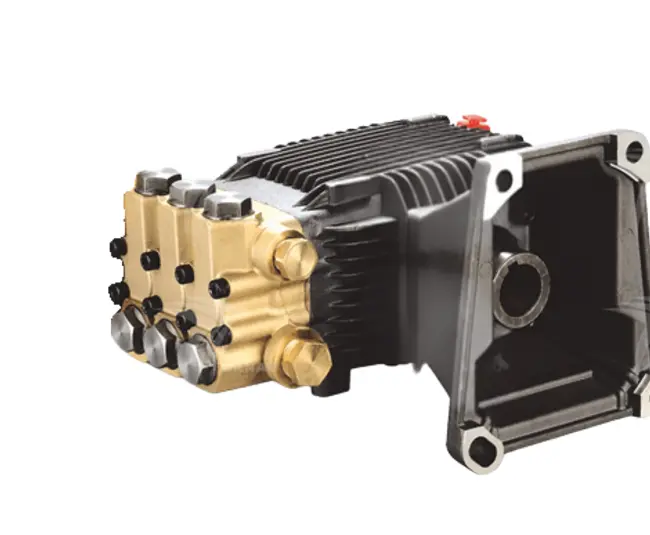

| Pump Model: |
49.2271 |
| Bore/Plunger Dia.: |
15mm |
| Stroke: |
10mm |
| Fluid End/Manifold Material: |
Brass Forged |
| Version/Type: |
A5 Version, Engine Direct Drive |
| Flange Type: |
A5 (Fits engine 9-13hp) |
| Shaft Dia.: |
Hollow Shaft 1"-25.4mm |
| Max Input POWER: |
13HP |
| Max Input RPM: |
3400RPM |
| Port On Pump: |
Inlet 3/8", Outlet 1" (On pump side) |
| Unloader/Pressure Regulator: |
Not included |
| Inlet/Port On Unloader: |
Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect |
| Oil Capacity: |
550ml |
| Oil Type: |
SAE 15W/40 Non-Detergent |
| Water Inlet Pressure: |
0-50psi |
| Max Inlet Water Temp.: |
122℉ |
