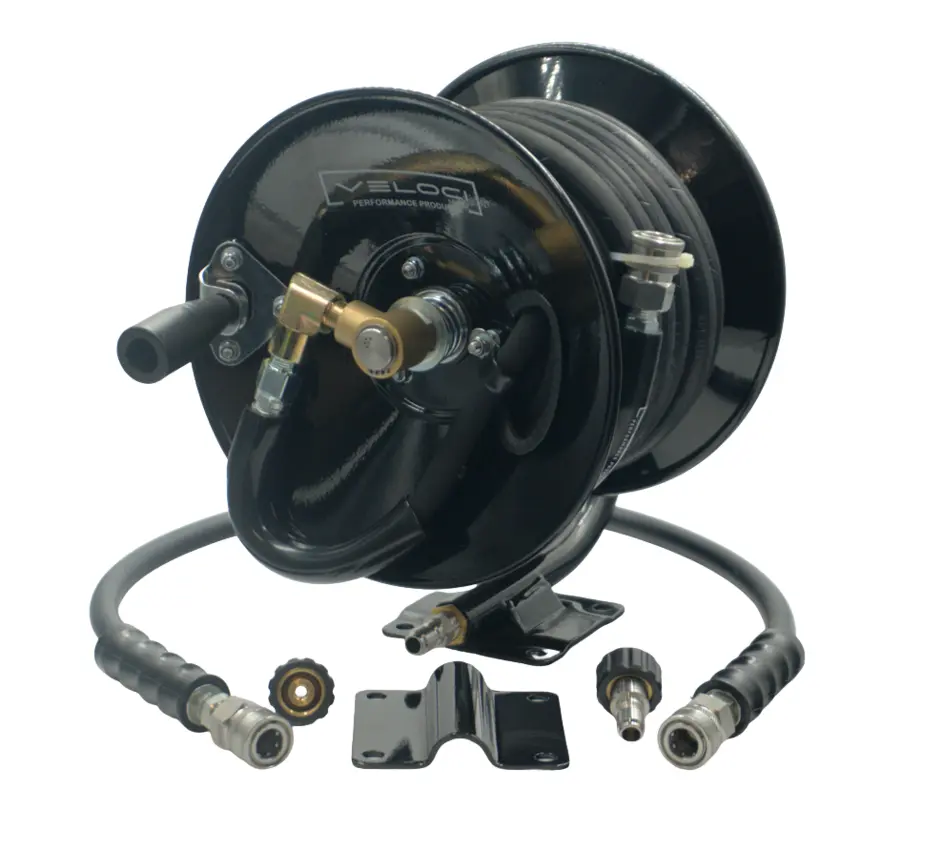

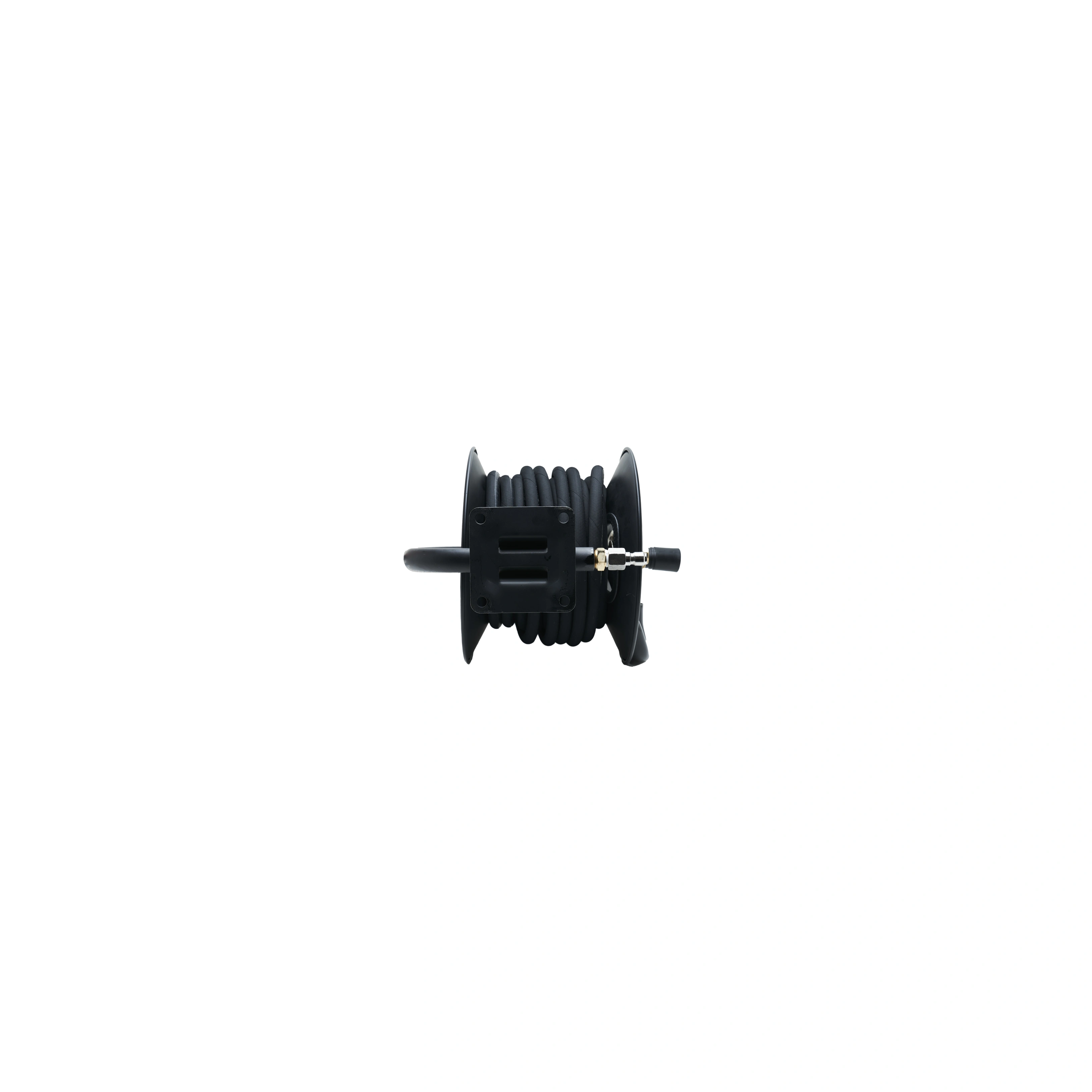

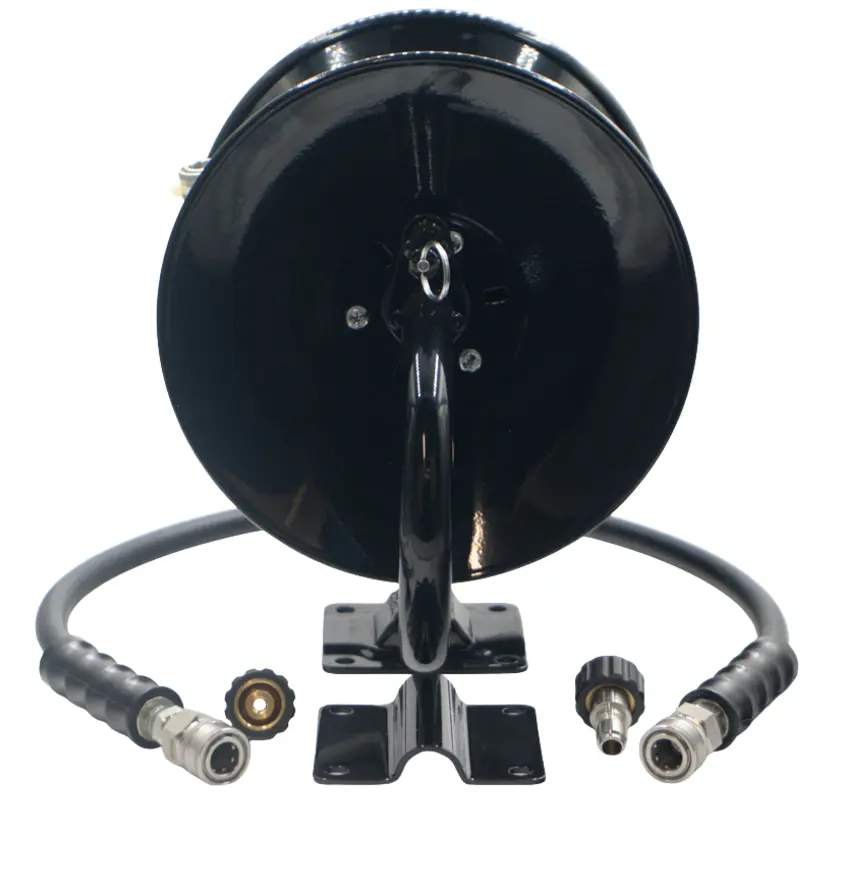

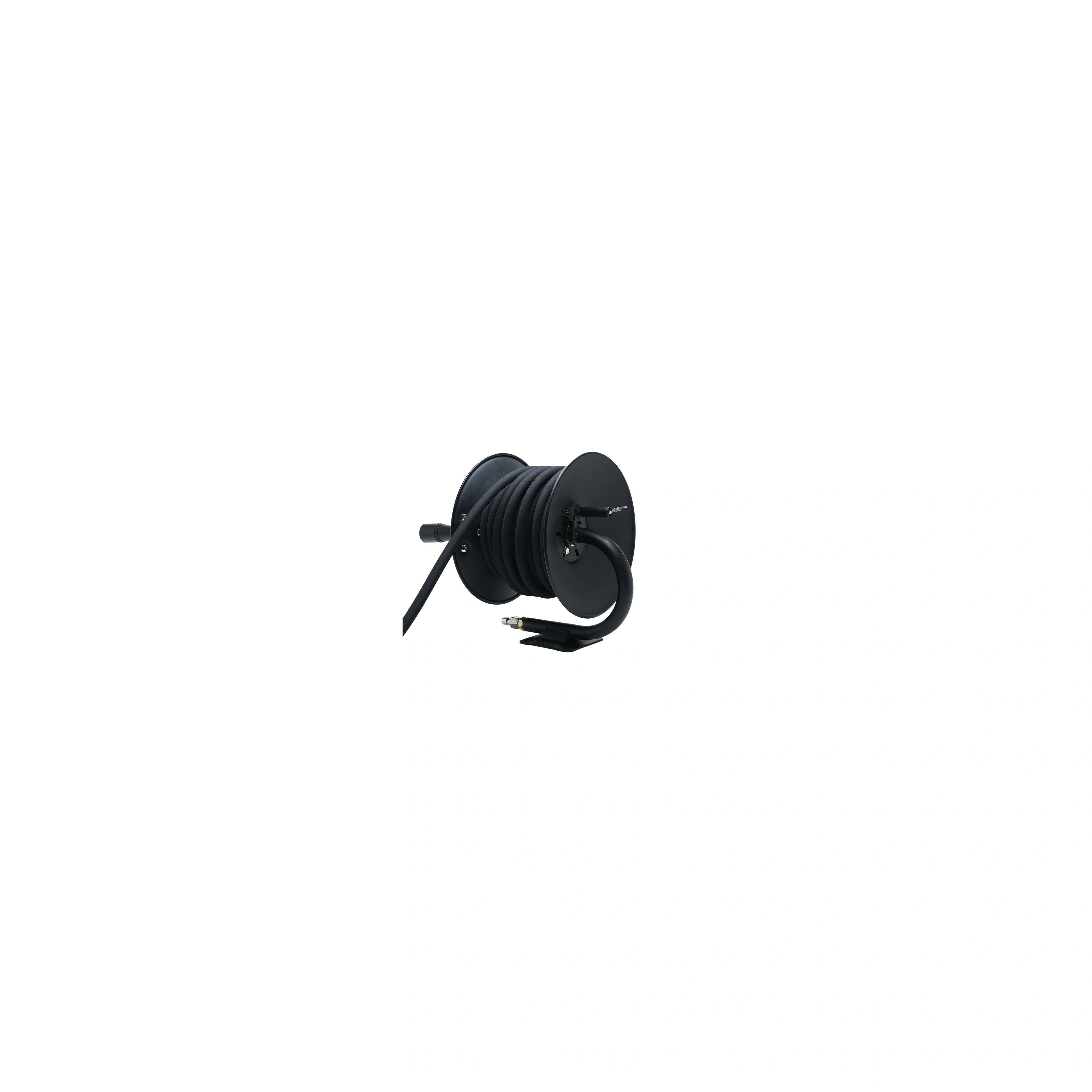

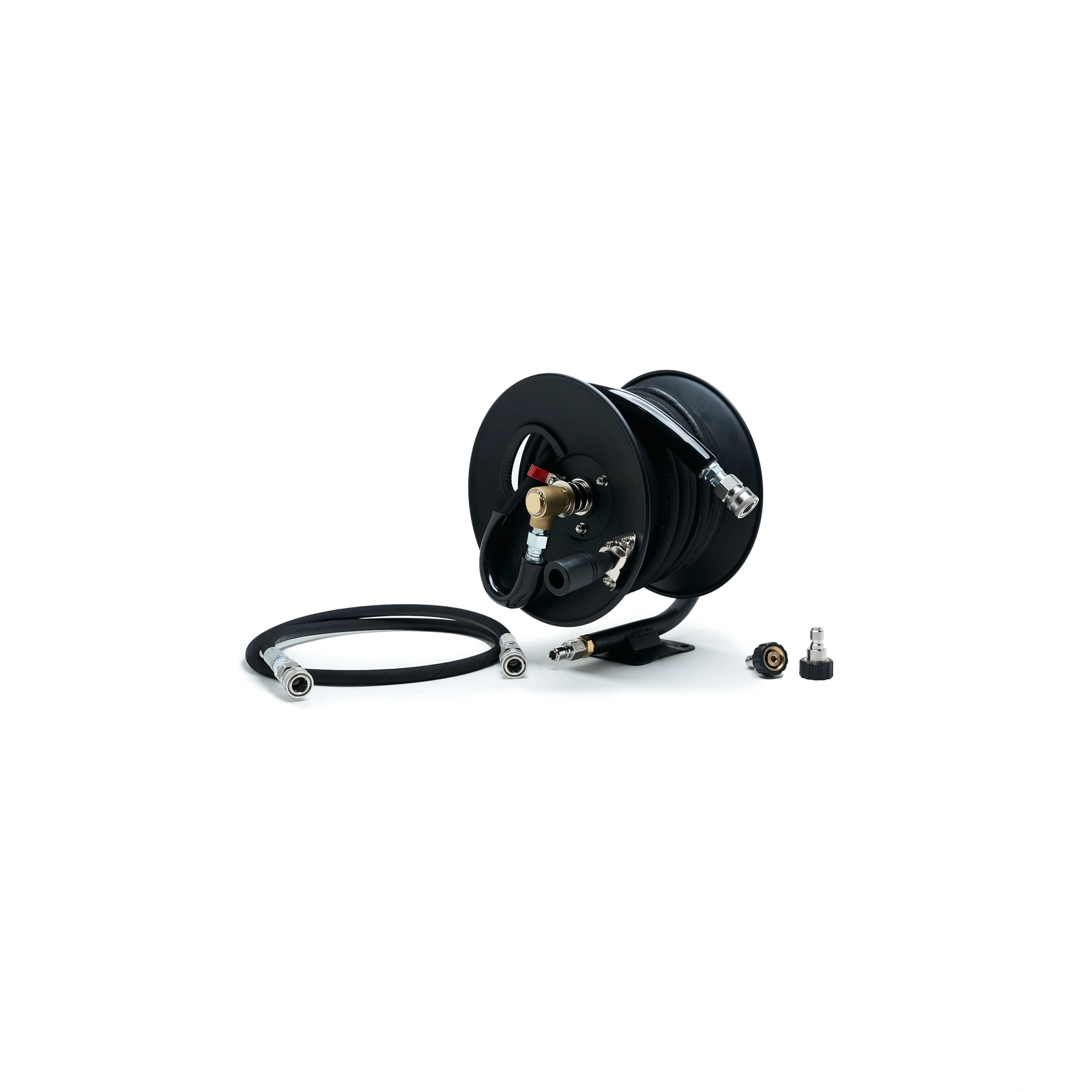

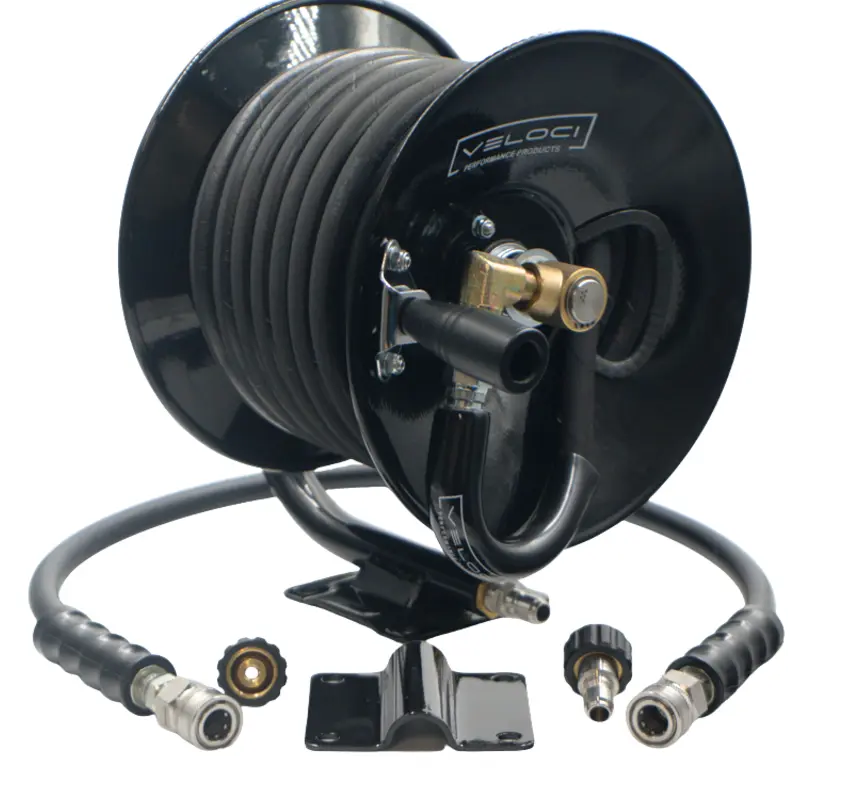

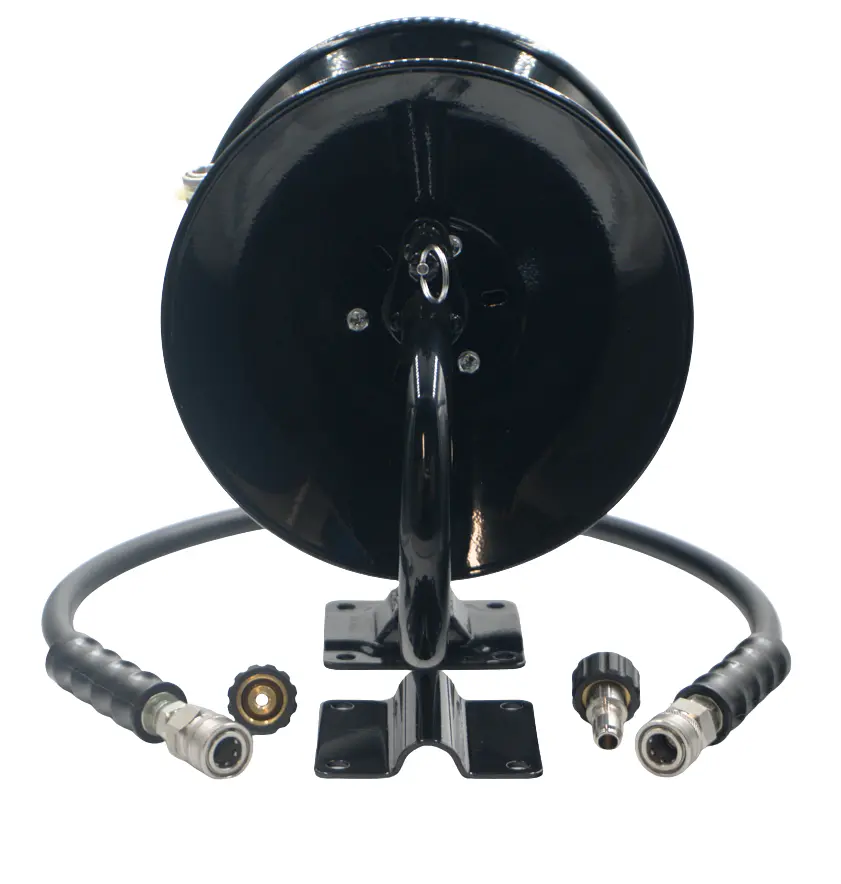

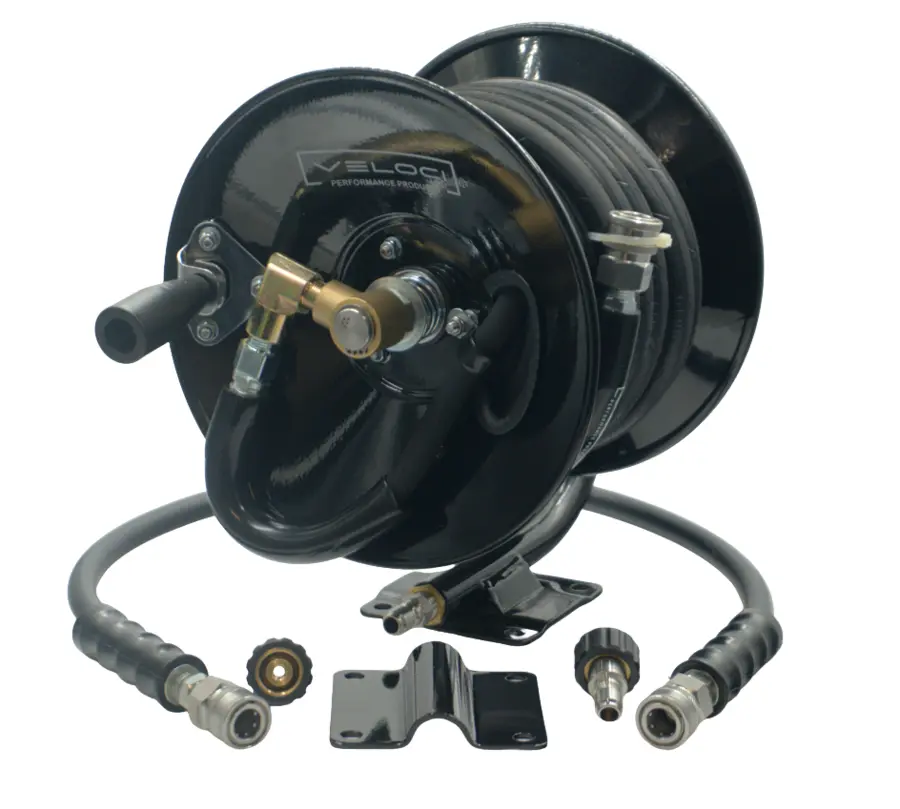

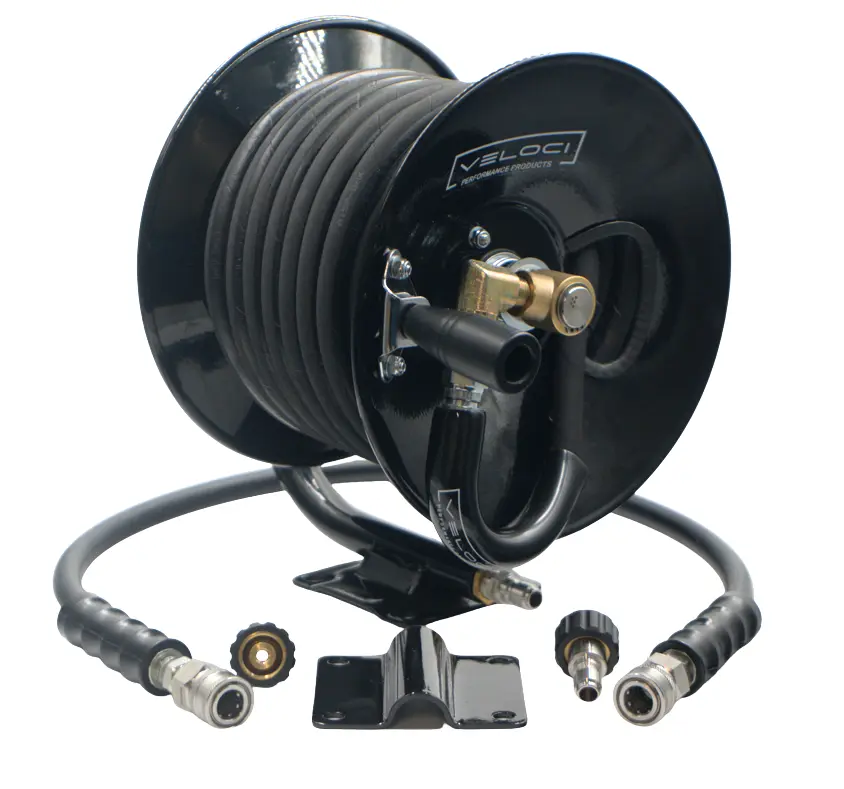

This all-inclusive hose reel kit has everything you need including installed fittings and assembly! The Professional 50' Hose Reel Kit includes a 50' hose reel, a 50' KobraJet black hose with a thick inner wall to prevent gashes and ruptures, a 5' whip line to connect to your pressure washer, pre-installed stainless steel quick connects, and a high-grade brass swivel that is recognized to outperform other competing models. **Specifications**

• 50' Hose Reel
• Supports 50' of 3/8" (ID) pressure washing hose
• Mounted Weight of 19lbs.
• 4,000 PSI Max
• 140° Max Temp

**Included**

• 50’ Hose Reel
• 50’ KobraJet Black3/8” 4,000 PSI Hose
• 5’ Whip Line 3/8" stainless steel couplers installed
• 3/8” stainless steel plug installed on inlet of hose reel
• 3/8” stainless steel coupler installed on outlet of hose
• Stainless steel M22 plug (14mm and 15mm included) to install on pressure washer pump
• Teflon Tape
• Installation and mounting instructions

Reel Dimensions

Measurement	50'	100'	150'	200'
Height	16.5"	16.5"	16.5"	16.5"
Total Width	15"	16.14"	15"	20.5"
Depth	13.5"	13.5	13.5"	13.5"
Wall Width	7.5"	8.66"	10"	16"
Core Width	4."	5.12"	6.375"	12.5"
Core Diameter	5.5"	5.5"	5.5"	5.5"
Inlet	3/8" Male NPT - 9" Pigtail	3/8" Male NPT - 9" Pigtail	3/8" Male NPT - 9" Pigtail	3/8" Male NPT - 9" Pigtail
Base to Center of Core	10"	10"	10"	10"
Mounting Bracket	4 slots-4.25" W x 3.375" D	4 slots-4.25" W x 3.375" D	4 slots-4.25" W x 3.375" D	4 slots-4.25" W x 3.375" D
Hole Diameter	0.375" x 2.2" Slot	0.375" x 2.2" Slot	0.375" x 2.2" Slot	0.375" x 2.2" Slot
Pin Lock	Yes	Yes	Yes	Yes
Mounting Hardware	None	None	None	None
